C Frame 100 Ton Hydraulic Machine

C Frame 100 Ton Hydraulic Machine
Price : 8.80 Lac - 10.10 Lac / one
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Certification ISO9001:2015
Color As Per Party
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Driven Type
Product Name
C Frame Hydraulic Press
100 tON
Product Code
Payment Terms
Delivery Time
20 TO 30 DAYS

Capacity                              :-  100 Ton

Stroke                                  :-  500mm

Ram To Bed                        :-  100mm

Working Table Size            :-  1000mm X 800mm

Working Height Table        :-  750mm

Throat                                  :-  400mm

Hole in Table                      :-  100mm

Hydraulic oil Tank              :-   250 Liters

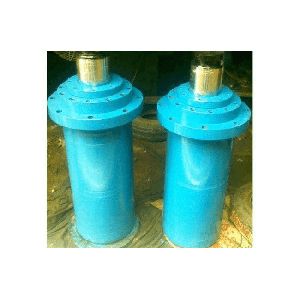

Hydraulic Cylinder             :-   Double Acting Type

T - Slotting Table                :-  20mm

Cylinder Dia Mtr                 :-  270mm

Cylinder ID                         :-  220mm

Ram Dia Mtr                       :-  180mm

Height of Cylinder              :-  800mm

Working Pressure      :-  Pressure 250 to 300 Kg /Cm² Suitable for 100 ton

Machine Size in mm    :-  1200 x 2200 x 3000mm (LxWxH)

Tank Dimension                    :-  700 x 600 x 600mm (LxWxH)

Motor                                     :-  10HP 3 Phase (Siemens or Hindustan)
