Pipe Bending Machine

v Make :-

· Model:- KHPR – 2500

· Machine Size:- 2500mm Width X 12mm MS Plate

· Top Roll Dia :- 240mm (+/-3)

· Bottom Roll Dia :- 190mm (+/-3mm)

v Motor Details :-

· Motor :- 15HP, RPM 960, Horizontal Foot Mounted, IE2, IP-55

· Hydraulic Motor :- 5 HP RPM 1440

· Make Motor :- SIEMENS /HINDUSTAN/ABB

v Gear Box Details:-

· Gear Box Type :- Worm Reduction

· Make :- Premium

· Model:- U-600

· Ratio :- 30:1

· Center Height  :- 6”

·  Top roll  attached in two cylindered 50 ton

v Other Details :-

· Guide Roller  :- Provided

· Side Support  :- Yes

· Extension Roll  :- Yes

· External Gears           :- 7 Gear Attachment

· Top Roll Hydraulic

 Cylinder 2Nos Size : - 40 ton

· Panel/switch  :- Push Button Station

· Lubrication Sump  :- Yes

· Packing  :- Poylthene Wrapping

· Foundation And GA Drawing :- Provided

· Scale Pointer :- Provided

· Operation Manual:- Provided

v Material of Construction :-

· Top Roll :- EN8/EN9

· Bottom Roll :- EN8/EN9

· Side Screw 1Nos :- EN8/EN9

· 7Gear MOC :- New Forging or Bar Stock

· MS Structure And Plate:-IS2062(Main Supplier Sail/RINL/ESSAR/JSPL)

· 7 Gears :- New forging And machining

· Painting :- As per Customer’s requirement

· Site Installation:- Installation, Level Check And Trail Test

· Machine Weight:- 3.5 to 4.0 tons

Kiran Hydraulics is a renowned 3-roller pipe bending machine manufacturer in India. With a vision to become a reliable firm in this domain, we have been engrossed in manufacturing and supplying top-notch grade 3-Roller Pipe Bending Machines. This machine is highly suitable to be used in the construction, automobile and manufacturing industries.

Having fast processing speed and excellent functionality, offered machine is best to be used for bending pipes in the accurate and desired manner. Provided machine is checked on several parameters before dispatching into the market to ensure flawless delivery to clients. With the latest innovative techniques, offered 3-Roller pipe Bending Machine is manufactured using quality-checked components under the observation of our diligent professionals at the advanced production unit.

Roll benders are tube bending and fabrication equipment that use three powered rollers in a triangular arrangement. Unlike mandrel bending, the inside of the tube or pipe is not supported. The top roller exerts downward pressure, while the two bottom rollers push up to deform the pipe.

Order our machines today.

        1. TYPE  H TYPE – DOWN STROKE

       2. MAIN  RAM CAPACITY    60TON

       3. RETURN CAPACITY      10TON

       4. STROKE          400 MM

       5. DAYLIGHT GAP     600 MM

      6. SHUT HEIGHT            200 MM

       7. NO. OF MAIN CYLINDER     1 NO. Double ACTING

        8. MAIN RAM DIA    110 MM

    9. BED SIZE    600 x 600 MM

      10. MOVING BOLSTER SIZE   600 x 600MM

       11. MAIN CYLINDER SPEED

A) APPROACHINGSPEED 70 MM / SEC

B) PRESSING SPEED    8-15 MM/ SEC

C) RETURN SPEED  100 MM / SEC

12.  WORKING HEIGHT FROM FLOOR LEVEL 700 MM

13.  MAXIMUM WORKING PRESSURE  250 KG / CM2

14.  T- SLOT SIZE     1/2inch’s

15. DIE CUSHION CAPACITY  25TONS

16. DIE CUSHION STROKE 50-200 MM

17. DIE CUSHION TABLE SIZE  300 X 300 MM (SINGLE PAD)

18, CUSHION PIN HOLES      25 MM DIA EACH

19. CYCLE CONTROL           THROUGH PANEL

20. MODE OF OPERATION      PUSH BUTTON HAVING THE                                                                        PROVISION    OF“AUTO”& “INCH”                                                               CYCLE

Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India

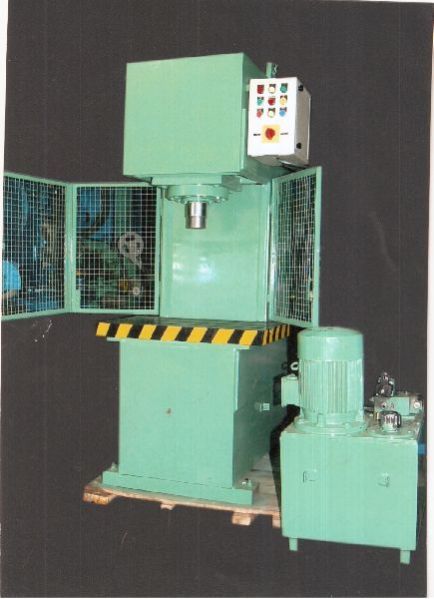

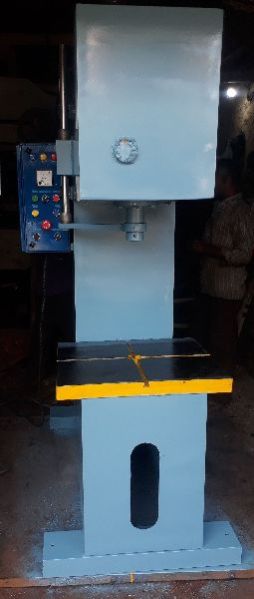

C Type Hydraulic Press Machine

Hydraulic Pipe Bending Machine

We are manufacturer, Supplier and exporter of Scrap Baling Press. Our Scrap Baling Machine that is highly automated and simple in operation with single compact unit mounted over the channel. Fabricated in compliance with set International quality standards,

v ½”          :-  21.4mm

v ¾”          :-  26.9mm

v 1”           :-  34.1mm

v 1 - ¼ ”    :-  42.8mm

v 1 - ½”     :-  48.4mm

v 2”            :-  60.3mm

v 2” - ½”    :- 76.2mm

v 3”            :-  88.9mm

v 4”            :-  114.3mm

kiran hydraulics manufacturer, supplier and exporter of high quality hydraulic power pack and hydraulic cylinder from mumbai, india. advanced machinery & high quality material. perfect engineering

Ø Main Capacity :- 100 Ton

Ø Type of the machine :-  H Type power Operated Hydraulic press

Ø Bed Size :- 1200X 600mm (L x B)

Ø Between Ram to Bed :- 180(Mini) x 975mm (Max)

Ø Body Plate:- 25mm

Ø Travel Of Ram :- 235mm

Ø Tank Capacity :- 200 Litre

Ø Motor :- 7.5Hp 3 Phase 1440 RPM Flange Moulding

Ø Pressure :- 250Kg

Ø Main Cylinder Ram Diameter :- 125mm

Kiran Hydraulics is the best industrial pipe-bending machine in India. Our company is growing fast in the hydraulic and motorized pipe bending machines. They are manufacturers of hydraulic pipe bending machines.

These machines are different from others in many ways. The dies are strong and mostly unbreakable and it has double-acting pumps ( 2 pumps) in the 2-inch and 3-inch machines for providing user options for thin and thick pipes. We also have a motorized square pipe bending machine.

We at Merchant Machinery Mart are the stockist for these pipe-bending machines. We do wholesale supply as well as retail for these machines.

We keep these machines in stock and supply them all over India from Mumbai. We have also moved into exporting these machines to a few countries.

To enable us to control and combine all the various activities in an organized and effective manner, we operate a fully integrated system.

With the assistance of custom-designed computer packages and a customer-committed management team, we can ensure on-time completion and delivery of work.

Together with this, our customers will always have our guarantee that only the highest quality will be delivered.

Order our products today.

Three Roller Type Pipe Bending Machine

COMPLETE ASSEMBLY WITH DIE SET NB OD: - ½” to 3”
