| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Type | Hydraulic |
| Material | Stainless Steel |
| Operating Mode | Automatic |
| Packaging Type | Carton Box |
| Usage | Industrial |
| Specialities | Rust Proof, High Performance, Easy To Operate |
| Finishing | Polished |
| Speed | 3-5 mm/s |
| Stroke | 225 mm |
| Frequency | 60 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Automatic Grade | Semi-Automatic |
| Certification | ISO9001:2015 |
| Color | As Per Party |
| Product Name | C type Hydraulic Press Machine |
| Size | 60 Ton |
| Product Code | KHCP60 |
| Port | MUMBAI PORT |
| Payment Terms | T/T |
| Delivery Time | 30 TO 35 DAYS |
| Packaging Details | Wooden Box |
Preferred Buyer From
| Location | Worldwide |
Capacity | 60 ton |
Stroke | 225 mm |
Ram to Bed | 650mm |
Working Table Size | 550mm X 600mm |
Working height table | 750mm |
Throat | 230mm |
Hole in Table | 60mm |
Small length | 460mm |
Table Depth | 460mm |
long length (optional) | 1050mm |
Table width | 250mm |
Hydraulic oil tank | 150 Liters |
Hydraulic Cylinder | Double Acting type |
T- slotting table | ½” |
Cylinder Dia Mtr | 178mm |
Cylinder ID | 150mm |
Ram Dia Mtr | 100mm |
Height of Cylinder | 500mm |
Working Pressure | Pressure 300 Kg / Cm2 suitable for 60 ton |
Dimension | 600 X 500 X 600mm (L X W X H) |
Motor | 7.5 HP 3 Phase (Siemens or Hindustan) |
Consisting Of Drain Valve, Oil Tank, Oil Level Indictor, Oil filter cum breather | High Pressure Piston Pump, Pump Motor Camping, NRV pressure Gauge with Adaptor Along with Circuit Block |
Machine OperatioN | With Semi-Automatic panel Board (Push button, Foot Switch, Limit Switch & Inches adjustment ) |
All Boy Plate | 32mm (M.S Profile Cutting Plate ) |
Weight of Machine | 3 to 3.5 tons |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Hydraulic Power Press |
| Brand Name | Kiran Hydraulics |
| Certification | CE Certified |
| Reverse Rotation | No |
| Material | Mild Steel |
| Shape | Square |
| Color | Blue |
| Voltage | 220V |
| Condition | New |
| Phase | Three Phase |
| Warranty | 1 Year |
| Operating Mode | Automatic |
| Corrosion Resistance | Yes |
| Machine Structure | Horizontal |
| Pressure | High Pressure |
| Usage | Hydraulic Press Machine |
| Capacity | 100-200kg/h |
| Finishing | Chrome Finish |
| Frequency | 1280 |
| After-Sales Service Provided | Yes |
| Product | Hydraulic Press Machine |
| Product Code | 014 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Certification | ISO 9001:2008 |
| Processing Type | Cnc Machine |
| Condition | New |
| Warranty | 1 Year |
| Operation Mode | Fully Automatic |
| Color | Green |
| Type | Hydraulic Rubber Press and Moulding Machine |
| Brand Name | Kiran Hydraulic |
| Voltage | NA |
| Power | Electricity |
| Usage | Hydraulic Rubber Press and Moulding Machine |
| Name | Hydraulic Rubber Press and Moulding Machine |
| Product Code | 026 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | We Are Offering Rubber Moulding Press That is Designed With Automatic Exhaust; Automatic Closing Mould and Curing Calculate Time. Our Offered Moulding Press Finds Application in Various Types of Industries, Which Are Involved in the Process of Rubber Molding. |
Preferred Buyer From
| Location | Worldwide |
We Are Offering Rubber Moulding Press That is Designed With Automatic Exhaust; Automatic Closing Mould and Curing Calculate Time. Our Offered Moulding Press Finds Application in Various Types of Industries, Which Are Involved in the Process of Rubber Molding.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Deep Drawing Press |
| Certification | ISO 9001:2015 |
| Application | Metals |
| Weight | 4000-5000kg |
| Color | Blue |
| Voltage | 440V |
| Condition | New |
| Automatic Grade | Automatic, Fully Automatic, Semi Automatic |
| Power | 9-12kw |
| Driven Type | Hydraulic |
| Warranty | 2years |
| Brand Name | KIRAN HYDRAULICS |
| Material | MS |
| Thickness | 1mm |
| Power Source | Electrical |
| After-Sales Service Provided | 24 M |
| Usage | deep draw |
| Product Name | hydraulic deep drawing press |
| Colour | blue |
| Product Code | KHDDP200 |
| Port | MUMBAI PORT |
| Payment Terms | T/T |
| Delivery Time | 45-60 DAYS |
| Packaging Details | wooden box |
Preferred Buyer From
| Location | Worldwide |
Machine Description |
Capacity- 200 Ton |
Cylinder Id 300mm ST52 Seamless Steel Tube |
OD 325mm EN8 M.S |
Return Capacity- 20 Ton (Inclusive Top Tool Weight) |
Operating System- PLC based HMI |
Bolster & Slide Size - 800 mm ( L TO R ) x 600 mm ( F TO B ) |
Bolster Type- Fixed |
Pressing Stroke - 1200 mm, Down Stroking |
Open Daylight - 1600 mm |
Total Connected Load- 25 HP |
Design- 4 Pillar inside column design, Fabricated structure |
Slide Guiding - 8 Point gib Guiding system with Replaceable Phosphorus Bronze replaceable Linear |
Geometrical Accuracies- Parallelism, Perpendicularity, Flatness as per JIS Standard Grade 2 |
Ejector Pin Hole Dia- 40 mm |
|
PRESSURE PLATE DETAILS |
Dia Cushion Capacity- 80 ton |
Pressure Plate Size- 750 mm x 550 mm |
Hole in Pressure Plate- 280 mm |
Ejector Capacity- 20 TON |
Ejector Stroke- 200 mm |
|
SLIDE SPEED (Please specify) |
Approx. Approach / Pressing / Return Speed (30 / 3 / 60mm/sec) |
|
STROKE AND PRESSURE CONTROL SYSTEM |
Main Ram Pressure Controlling -Digitally Controlled by HMI |
Slide Ram Stroke Adjustment-Digitally Controlled by HMI |
Pressure Plate Pressure Control -Digitally Controlled by HMI |
Pressure Plate Stroke Control -Digitally Controlled by HMI |
|
HYDRAULIC SYSTEM |
Hydraulic System -Specially Design Manifold Block For Leak Proof Operation. All Piping is Seamless with Welded and Tested. |
Oil Tank -700 liters |
Oil Filter-Return Line Oil Filter |
Oil Cooling-Water Cooling Heat Exchanger |
Hydraulic Pump -Yuken, Rexroth, Veljan or Equivalent |
System Working Pressure-250 kg/cm2 |
Power Pack Position- Top Of Machine with catwalk and safety ladder |
Lubrication System -Auto Lubrication System |
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Type | Pressing Machine |
| Power | Hydraulic |
| Warranty | 2years |
| Usage | Industrial |
| Size | 100 TON |
| Body Material | Steel |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Application | Press Machine |
| Weight | 100-500kg |
| Warranty | 1 Year |
| Warrenty | 1 Year |
| Certification | Ce Certified |
| Color | Blue |
| Voltage | 220V |
| Condition | New |
| Automatic Grade | Automatic |
| Type | Press Machine |
| Brand Name | Kiran Hydraulic |
| Power | Electricity |
| After-Sales Service Provided | Yes |
| Usage | H Type Hydraulic Press Machine |
| Name | Hydraulic Press Machine |
| Product | Hydraulic Press Machine |
| Product Code | 086 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export packaging |
Preferred Buyer From
| Location | Worldwide |
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Power Source | Electric |
| Warranty | 1 Year |
| Warrenty | 1 Year |
| Certification | ISO 9001:2008 |
| Color | Blue |
| Condition | New |
| Automatic Grade | Automatic |
| Type | Hydraulic Rubber Press and Moulding Machine |
| Brand Name | Kiran Hydraulic |
| Power | Electricity |
| After-Sales Service Provided | Yes |
| Name | H Type Hydraulic Press Machine |
| Product | H Type Hydraulic Press Machine |
| Product Code | 051 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Structure | Fabricated |
| Size | Up to 250 Ton |
| Body Material | Steel |
| Usage | Industrial |
| Power | Hydraulic |
| Weight | 1500 Kilograms (kg) |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Application | Making Paper Plate |
| Weight | 100-500kg |
| Processing Type | Vacuum Forming |
| Production Capacity | 500-1000 /hr |
| Warranty | 1 Year |
| 0 | Thermocol Plate Making Machine |
| Warrenty | 1 Year |
| Certification | ISO 9001:2015 |
| Color | blue |
| Voltage | 440V |
| Condition | New |
| Automatic Grade | Fully Automatic |
| Type | Press Machine |
| Brand Name | Kiran Hydraulic |
| Power | 420 |
| After-Sales Service Provided | Yes |
| Usage | H Type Hydraulic Press Machine |
| Name | H Type Hydraulic Press Machine |
| Product | H Type Hydraulic Press Machine |
| Product Code | 122 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Automatic Grade | Manual |
| Power | 1-3kw |
| Driven | Electric |
| Brand Name | KIRAN HYDRAULICS |
| Voltage | 220V |
| Plate Type | Ms |
| Raw Material | MS |
| Automation | MANUAL |
| Machine Type | H Type |
| Warranty | 1year |
| After-Sales Service Provided | 24 M |
| Usage | INDUSTRIAL |
| Product Name | H TYPE HYDRAULIC PRESS MACHINE |
| Product Code | KHHP |
| Port | MUMBAI PORT |
| Payment Terms | T/T |
| Delivery Time | 7 to 10 days |
| Packaging Details | WOODEN BOX |
Preferred Buyer From
| Location | Worldwide |

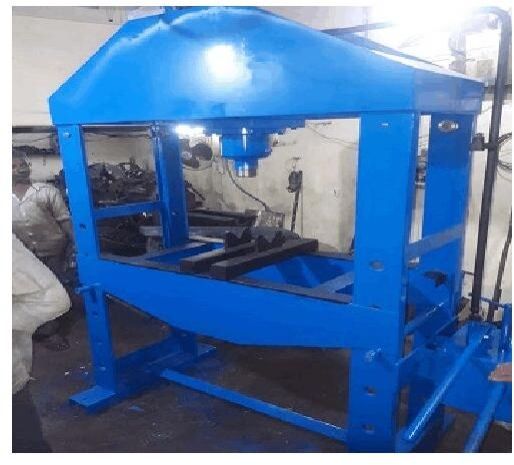

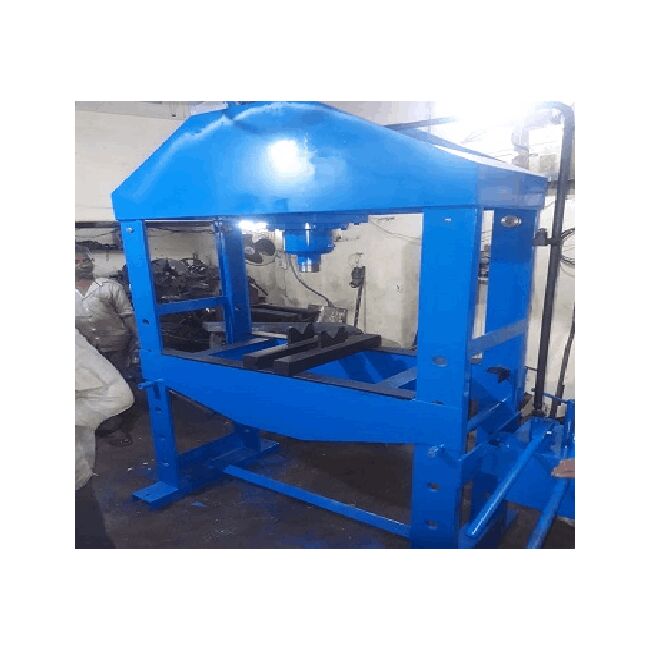

Hand Operated Hydraulic Press :
- The sturdy construction of all presses guarantees stability and durability
- The Press is provided within a 2 stage hand pump. The low pressure pump is used for rapid advance of piston at low pressure
- The high pressure pump is provided with a special material lining and is used for slow advanced at high pressure
- The winch provided for raising and lowering the table is smooth running. During operation the table is fastened by means of pins.
- The press has been all welded standard accessories and planned off V Block for straightening.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Heavy Duty Shearing Machine |
| Certification | CE Certified |
| Color | Blue |
| Voltage | 220V |
| Condition | New |
| Function | Washing |
| Automatic Grade | Automatic |
| Power | 3-6kw |
| Warranty | 1year |
| Driven | Hydraulic |
| Brand Name | Kiran Hydraulic |
| Power Source | Electricity |
| After-Sales Service Provided | Yes |
| Usage | Heavy Duty Shearing Machine |
| Product | Heavy Duty Shearing Machine Mamufacturer |
| Name | Heavy Duty Shearing Machine Exporter |
| Product Code | 065 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
Kiran Hydraulic Manufacturer Supplier and Exporter of Hydraulic Shearing Machine, Hydraulic Press Manufacturer, Deep Drawing Presses Supplier, Exporter From India, High Speed, Latest Technology, High Productivity Hydraulic Shearing Machine
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Heavy Duty Shearing Machine |
| Certification | CE Certified |
| Voltage | 220V |
| Condition | New |
| Automatic Grade | Automatic |
| Power | 1-3kw |
| Warranty | 1year |
| Driven | Hydraulic |
| Brand Name | Kiran Hydraulic |
| After-Sales Service Provided | Yes |
| Usage | Heavy Duty Shearing Machine |
| Name | Heavy Duty Shearing Machine |
| Product | Heavy Duty Shearing Machine |
| Product Code | 101 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
Kiran Hydraulic Manufacturer Supplier and Exporter of Hydraulic Shearing Machine, Hydraulic Press Manufacturer, Deep Drawing Presses Supplier, Exporter From India, High Speed, Latest Technology, High Productivity Hydraulic Shearing Machine
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Power Operated Hydraulic Press |
| Certification | CE Certified, ISO 9001:2008 |
| Voltage | 220V |
| Condition | New |
| Automatic Grade | Automatic |
| Power Source | Hydraulic |
| Brand Name | Kiran Hydraulic |
| Raw Material | NA |
| Automation | Yes |
| After-Sales Service Provided | Yes |
| Usage | 100 Ton Power Operated Hydraulic Press Machine |
| Name | Hydraulic Press Machine |
| Product | 100 Ton Hydraulic Press Machine |
| Product Code | 0163 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
Our Expertise and Trustworthiness, We Are Engaged in Offering an Optimum Quality Range of Hydraulic Press Machine. Manufacturer, Supplier and Exporter of Hydraulic Press - Automatic Hydraulic Press Machine From India
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Country of Origin | India |
| Type | Hydraulic Power Press |
| Brand Name | Kiran Hydraulics |
| Certification | ISO 9001:2015 |
| Reverse Rotation | Yes |
| Is It Variable Speed | Yes |
| Shape | Rectangular |
| Condition | New |
| Phase | 3 |
| Warranty | 2 Years |
| Operating Mode | Semi Automatic |
| Corrosion Resistance | Yes |
| Machine Structure | Horizontal |
| Width | 70mm |
| Machine Weight | 4000-5000kg |
| Overall Length | As For Machine |
| Usage | Sheet Bending, PET Bottles, Used Cloth, Ms Scrape |
| Specialities | High Performance |
| Finishing | Polished, Unpolished, Chrome Finish |
| Bed Size in mm | As For Machine |
| Dimension (LxWxH) | As For Machine |
| Thickness | 1mm |
| Frequency | 12 Hrs |
| After-Sales Service Provided | 24 M |
| Tamper Resistant | 80 |
| Spindle Speed | 10mm |
| Moisture Resistance | -0 |
| Tear Resistance | 02 |
| Cutting Load | 250 |
| Capacity | As For Machine |
| Material | MS |
| Voltage | As For Machine Size |
| Power | AS FOR MACHINE SIZE |
| Color | Blue |
| Packaging Type | Wooden Box |
| Pressure | High Pressure |
| Working Pressure | 250 |
| Weight | 8500 Kilograms (kg) |
| Speed | 15 m/m |
| Height | 1500 Millimeter (mm) |
| Product Code | KHHSB150 |
| Port | MUMBAI PORT |
| Payment Terms | T/T |
| Delivery Time | 45-60 DAYS |
| Packaging Details | WOODEN BOX |
Preferred Buyer From
| Location | Worldwide |
|
Capacity |
150 Ton (Heavy Duty) |
|
Bale Size |
1000(L) x 1000(W) x 1000(H)mm |
|
Bale Weight |
200 to 300kg |
|
Platform Size |
1000(L) x 1000(W) |
|
No. of Cylinder |
1 Nos. |
|
Oil Tank Capacity |
350 Liters |
|
Door |
2 Doors (1-1 Doors) |
|
Cylinder Stroke |
1200 mm |
|
Day light Gap |
1400 mm |
|
Operation |
Electrical Panel Board |
|
Electric Motor |
20 HP, single phase 1440 rpm |
|
Hydraulic System |
Gear Pump piston pump |
|
Overall Dimension |
1500x15000x2500 mm (L X W X H)approx |
|
Erection & commissioning charges |
Include |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Cnc Punching Machine |
| Brand Name | Kiran Hydraulics |
| Certification | ISO 9001:2008 |
| Color | Blue |
| Condition | New |
| Pressure | High Pressure |
| Warranty | 1 Year |
| Automation Grade | Automatic |
| Power | 3-5 KW |
| Usage | Hydraulic Busbar Machine |
| After-Sales Service Provided | Yes |
| Name | Hydraulic Busbar Bending Machine |
| Product | Hydraulic Busbar Punching Machine |
| Product Code | 078 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
We Have a Unique Range of Bus Bar Punching/bending Machines, High Quality Busbar Machine With Competitive Price, Punching or Bending Machines Helps in Increasing the Production Efficiency, Busbar Bending Cutting and Punching Machine Manufacturers & Suppliers.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | C Frame Hydraulic Press |
| Brand Name | kiran hydraulics |
| Certification | ISO 9001:2015 |
| Reverse Rotation | Yes |
| Is It Variable Speed | Yes |
| Material | Mild Steel |
| Shape | vertical |
| Color | blue |
| Voltage | 440V |
| Condition | New |
| Phase | Three Phase |
| Warranty | 2 Years |
| Operating Mode | Semi Automatic |
| Corrosion Resistance | Yes |
| Machine Structure | Vertical |
| Width | as for machine size |
| Machine Weight | 4000-5000kg |
| Packaging Type | Wooden Box |
| Pressure | High Pressure |
| Overall Length | as for machine size |
| Power | as for machine size |
| Usage | as for party usage |
| Capacity | 250kg |
| Specialities | High Performance |
| Finishing | Unpolished |
| Bed Size in mm | as for machine size |
| Dimension (LxWxH) | as for machine size |
| Thickness | as for machine size |
| Frequency | 8h |
| After-Sales Service Provided | 24 M |
| Tamper Resistant | 150 |
| Spindle Speed | 50mm/sec |
| Moisture Resistance | 100 |
| Tear Resistance | 55 |
| Working Pressure | 250kg |
| Cutting Load | as for machine size |
| Product | hydraulic press machine |
| Product Name | c type hydraulic press machine |
| Product Code | kiranhydraulics |
| Port | MUMBAI PORT |
| Payment Terms | T/T |
| Delivery Time | 45-60 DAYS |
| Packaging Details | wooden box |
Preferred Buyer From
| Location | Worldwide |
hydraulic c type press machine
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Type | Hydraulic |
| Material | Stainless Steel |
| Operating Mode | Automatic |
| Usage | Industrial |
| Specialities | Rust Proof, Long Life, High Performance |
| Finishing | Polished |
| Body Material | Steel |
| Force | Hydraulic |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Voltage | 220V |
| Operating Mode | Automatic |
| Packaging Type | Carton Box |
| Usage | Industrial |
| Specialities | Rust Proof, Long Life, High Performance |
| Finishing | Polished |
| Body Material | Steel |
| Power | Hydraulic |
| Weight | 5-6 ton |
| Motor Power | 20 hp |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Brand Name | Organic India |
| Usage | Hydraulic Plate Rolling Machine Manufacturer |
| Name | Hydraulic Plate Rolling Machine Exporter |
| Product | Hydraulic Plate Rolling Machine |
| Product Code | 055 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
We Offer a Wide Array of Excellent Quality 3 Roll Hydraulic Plate Bending Machine. Manufacturer and Supplier of Hydraulic Plate Bending Machine From Mumbai, India.
1. Performance
2. Reliability
3. Quality
4. Technology
5. Experience
6. Service
| Business Type | Manufacturer, Exporter, Supplier |
| Usage | Hydraulic Plate Rolling Machine Supplier |
| Name | Hydraulic Plate Rolling Machine Exporter |
| Product Code | 054 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 20 TO 30 Days |
| Packaging Details | Standard Export Packaging |
Preferred Buyer From
| Location | Worldwide |
We Offer a Wide Array of Excellent Quality 3 Roll Hydraulic Plate Bending Machine. Manufacturer and Supplier of Hydraulic Plate Bending Machine From Mumbai, India.
1. Performance
2. Reliability
3. Quality
4. Technology
5. Experience
6. Service
| Business Type | Manufacturer, Exporter, Supplier |
| Reverse Rotation | No |
| Is It Variable Speed | Yes |
| Material | Mild Steel |
| Shape | Vertical Type |
| Color | Blue |
| Voltage | 440V |
| Condition | New |
| Phase | Three Phase |
| Warranty | 2 Years |
| Operating Mode | Automatic |
| Corrosion Resistance | Yes |
| Machine Structure | Vertical |
| Width | 25mm |
| Machine Weight | 1000-2000kg |
| Packaging Type | Carton Box |
| Pressure | High Pressure |
| Overall Length | 2200mm |
| Power | 6-9kw |
| Usage | straighteing, bending, reveting, breaking, jointing, opening, etc |
| Capacity | 100-200kg/h |
| Specialities | Rust Proof, High Performance, Easy To Operate |
| Finishing | Unpolished |
| Bed Size in mm | 1000x500mm |
| Dimension (LxWxH) | 1500X950X2200mm |
| Thickness | 25mm |
| After-Sales Service Provided | 24 M |
| Working Pressure | 250kg |
| Name | kiranhydraulics |
| Product Name | hydraulic press machine |
| Size | 100 ton |
| Product Code | KHHP100 |
| Port | MUMBAI PORT |
| Payment Terms | T/T |
| Delivery Time | 25-30DAYS |
| Packaging Details | wooden box |
Preferred Buyer From
| Location | Worldwide |
Ø Main Capacity :- 100 Ton
Ø Type of the machine :- H Type power Operated Hydraulic press
Ø Bed Size :- 1200X 600mm (L x B)
Ø Between Ram to Bed :- 180(Mini) x 975mm (Max)
Ø Body Plate :- 25mm
Ø Travel Of Ram :- 235mm
Ø Tank Capacity :- 200 Liter
Ø Motor :- 10Hp 3 Phase 1440 RPM Flange Molding
Ø Pressure :- 250Kg
Ø Main Cylinder Ram Diameter :- 125mm
